STEM // CUSTOM THREADLESS // STEEL


STEM // CUSTOM THREADLESS // STEEL

from 260.00
FINISH:
Quantity:
Add To Cart

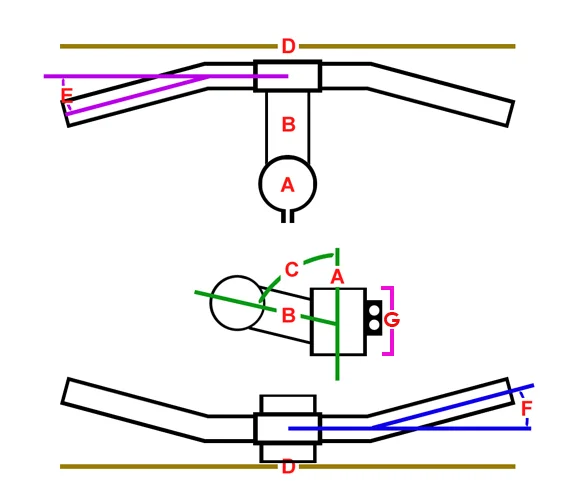

::: REFERENCE DIMENSIONS FOR CUSTOM STEMS


(A) STEERER TUBE DIAMETER *
----- size of clamp onto fork [1-1/8" is default/standard]
-----  1" Quill
-----  1" Threadless
-----  1-1/8" Threadless
-----  1-1/4" Threadless

(B) STEM EXTENSION LENGTH *
----- distance forward from fork
----- ie: 50mm, 95mm, 120mm, etc

(C) STEM EXTENSION ANGLE *
----- Rise or drop relative to fork angle *NOT* to vertical plumb or level ground

(G) THREADLESS STACK HEIGHT
----- Minimum is 40mm
