DEPOSIT // Developed for top Paralympic athletes, the EDIFICE adapter converts a standard 2-wheel bicycle frame to a performance oriented 3-wheel tricycle.

PRODUCT:
Quantity:
Add To Cart

Ti Cycles Edificeā„¢ 3-Wheel Conversion (DEPOSIT)

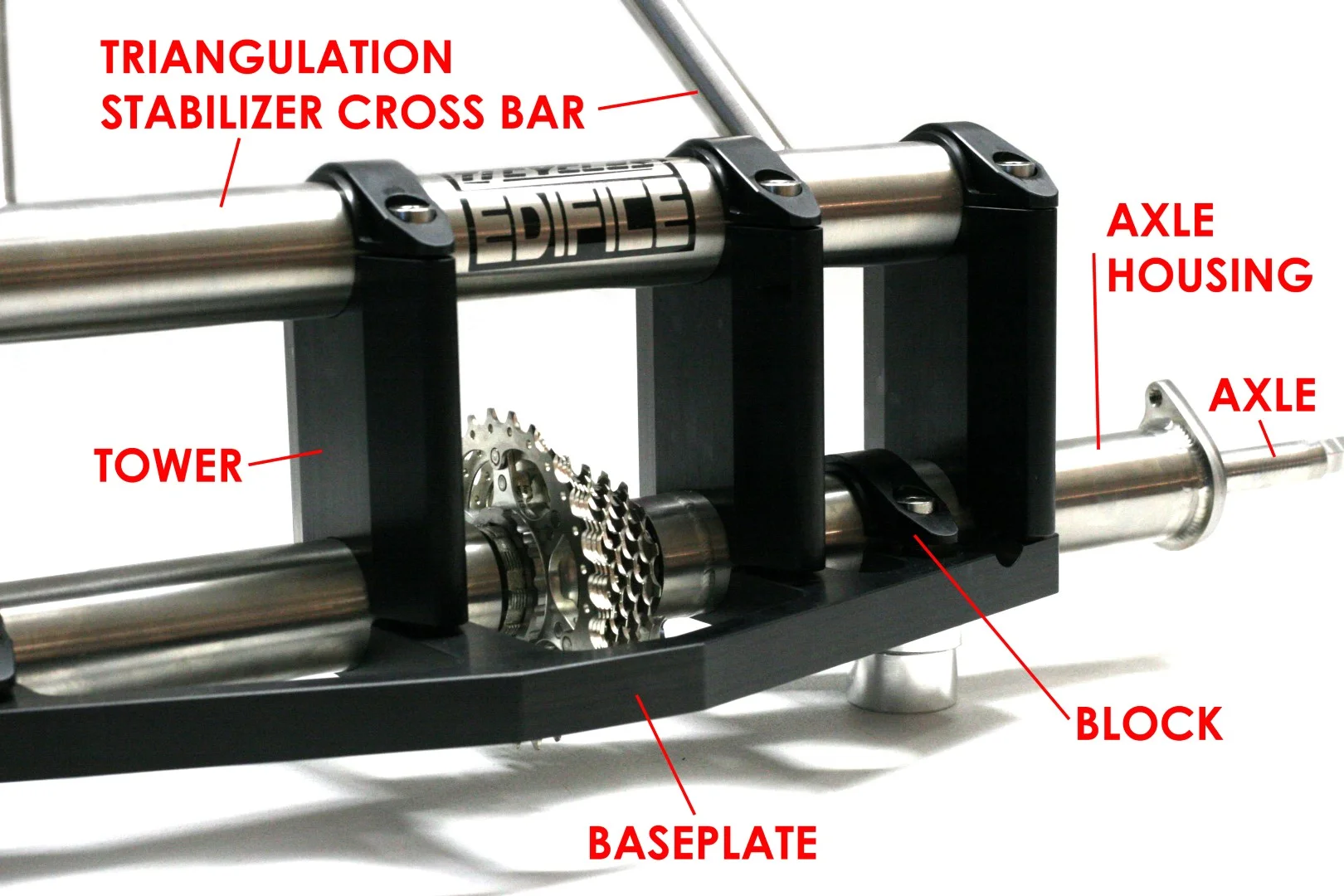

Developed for top Paralympic athletes, the EDIFICE adapter easily converts a standard 2-wheel bicycle frame to a performance oriented 3-wheel tricycle. The adapter consists of two precision made titanium axles, a titanium axle housing, a titanium triangular seat strut, and a titanium crash bar assembled with titanium hardware on an aluminum superstructure.

The EDIFICE adapter connects to a standard bicycle frame via the existing rear wheel dropouts and a triangulated point, generally the seatpost binder clamp, for stability.

The EDIFICE uses and is compatible with TryKit brand cassette adapter and hubs.

The EDIFICE is 100% made in the USA and assembled in our Portland shop.

The EDIFICE has been built in three different configurations, detailed below. All configurations use the same Baseplate.


CONFIGURATIONS

STANDARD CONFIGURATION
4 towers
2 blocks
Stabilizer/Strut
Crash Bar
4075 grams (approx)

LIGHTWEIGHT CONFIGURATION
2 towers
4 blocks
Stabilizer/Strut
Crash Bar
3360 grams (approx)

RACING CONFIGURATION
0 towers
6 blocks
Struts Only, No Stabilizer
Crash Bar
2595 grams (approx)

PLEASE NOTE: With any part there is an inherent trade-off between weight and durability and both must be considered. Standard Configuration adapters are the most solid and durable option. Racing Configuration adapters are built for optimal race day weight savings and do not offer the same stability or durability as Standard Configuration adapters and are not intended to be used for training or everyday use. All weights are approximate and based off triangulation of average dimensions for a 55cm/Medium size frame.



PRODUCT: BASIC ADAPTER

  • 1x titanium crash bar

  • 1x aluminum superstructure

  • 2x 140/160mm IS/Post Mount disc caliper adapter

  • Assembled with titanium hardware

  • 2x precision made titanium axles

  • 2x titanium axle housing

  • 1x 10/11spd Trykit freehub body

  • 1x titanium triangulation seat strut

(no wheels or brake rotors)



PRODUCT: ADAPTER + 3 WHEEL SET

Ready to bolt up and ride (please note that a longer chain will be required)

  • 1x complete adapter assembly as listed above

  • 2x 140mm or 160mm disc rotors

  • 3x matching 88mm carbon aero wheel set with Trykit hubs



PRODUCT: FULL BIKE BUILD

Includes titanium Semi-Custom road racing frame and carbon fork.

SRAM Red eTap BIKE PACKAGE

FRAME/FORK: Ti Cycles Semi-Custom disc
DRIVETRAIN: Sram Red eTap
BRAKES: TRP Spyre Mechanical
COCKPIT: Enve Carbon
SADDLE: Fizik Arione Classic
TIRES: Schwalbe Pro One 700x25c

SHIMANO Ultegra Di2 BIKE PACKAGE

FRAME/FORK: Ti Cycles Semi-Custom disc
DRIVETRAIN: Shimano Ultegra R8050
BRAKES: TRP Spyre Mechanical
COCKPIT: Enve Carbon
SADDLE: Fizik Arione Classic
WHEELS: Edifice 88mm aero carbon clincher
with Trykit hubsSchwalbe Pro One 700x25c


ORDER PROCESS

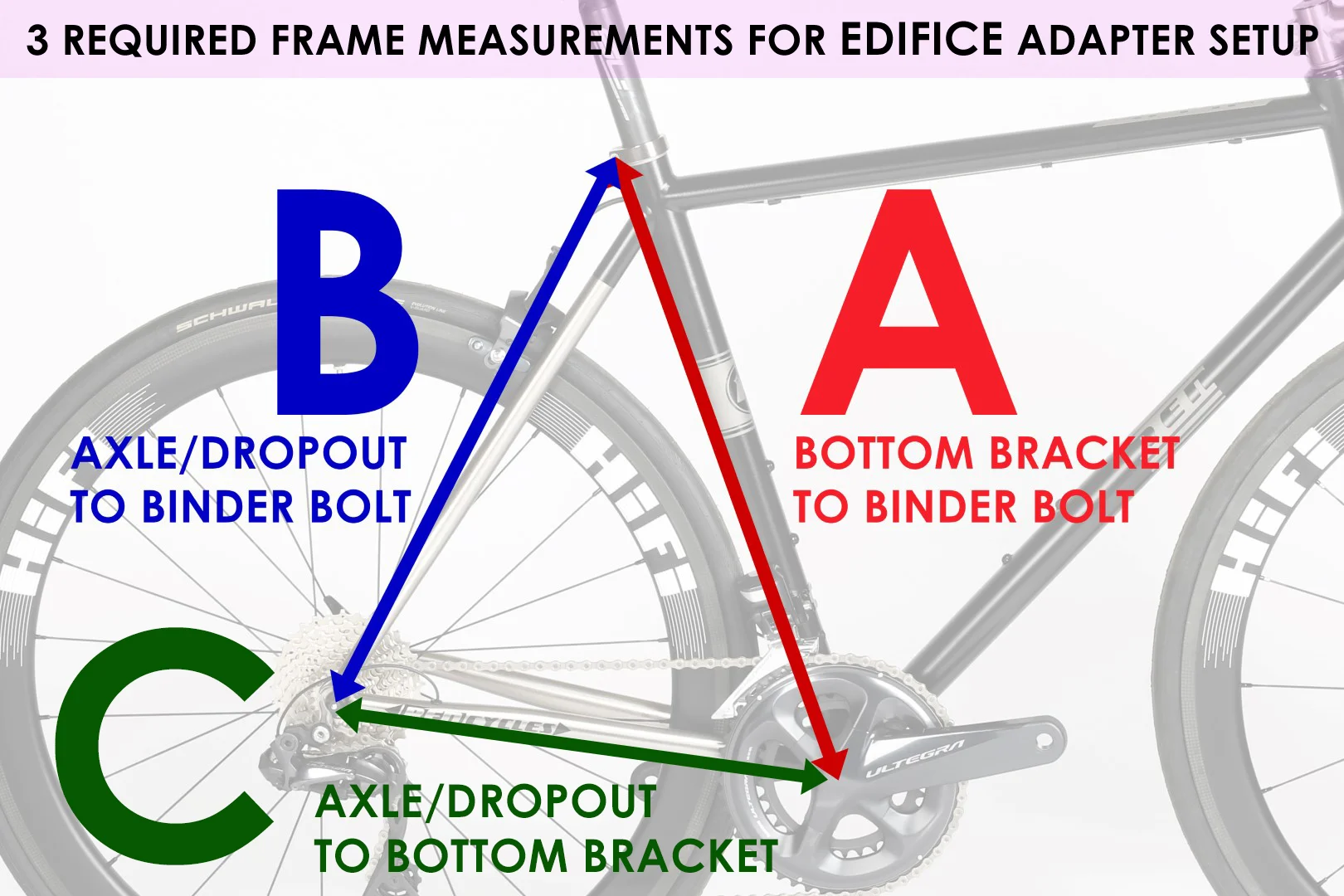

While the EDIFICE is a standardized platform the bicycles that it mounts to come in numerous shapes and sizes, requiring some degree of customization for each adapter. For a precise fit we require the following information for every order:

-- Desired overall adapter width
-- Measurement from frame rear axle dropout to seaptost binder bolt*
-- Measurement from bottom bracket center to seatpost binder bolt*
-- Measurement from frame rear axle dropout to bottom bracket center*
-- Photo/type of seatpost binder bolt*
(* Required to calculate proper length for triangulated seat struts)

PLEASE NOTE: This payment is a deposit for a finished product. All EDIFICE adapters are made to order for the specific customer and generally have a lead time of 4-6 months from date of order.
