INTERNAL ROUTING PORTS / TITANIUM

tcf-tubes-routing-ti-w322-internal-ports (0).jpg
tcf-tubes-routing-ti-w322-internal-ports (0).jpg

INTERNAL ROUTING PORTS / TITANIUM

from 6.00
INSERT TYPE:
Quantity:
Add To Cart

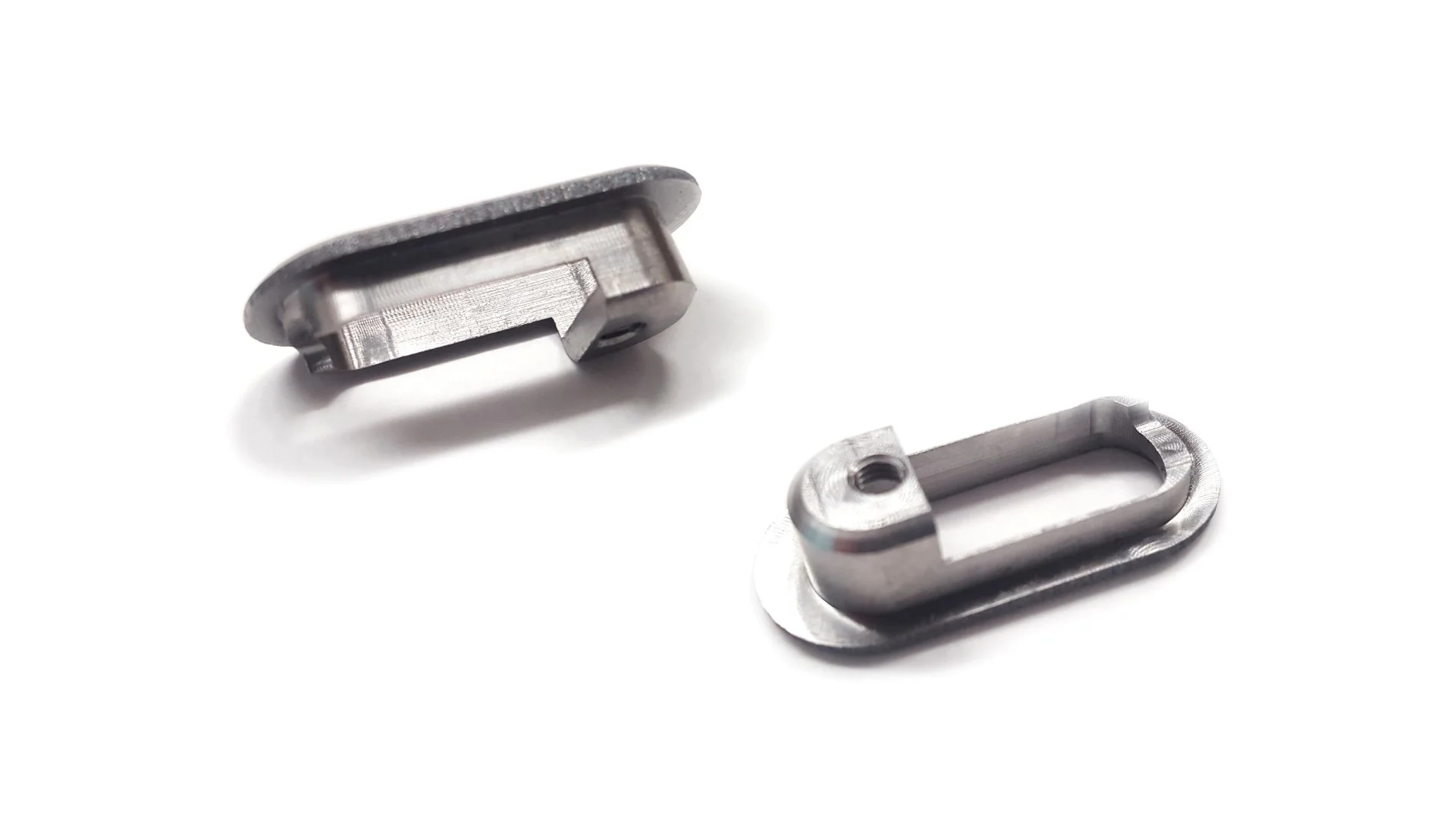

Weld-In titanium ports for internal brake/shift routing.

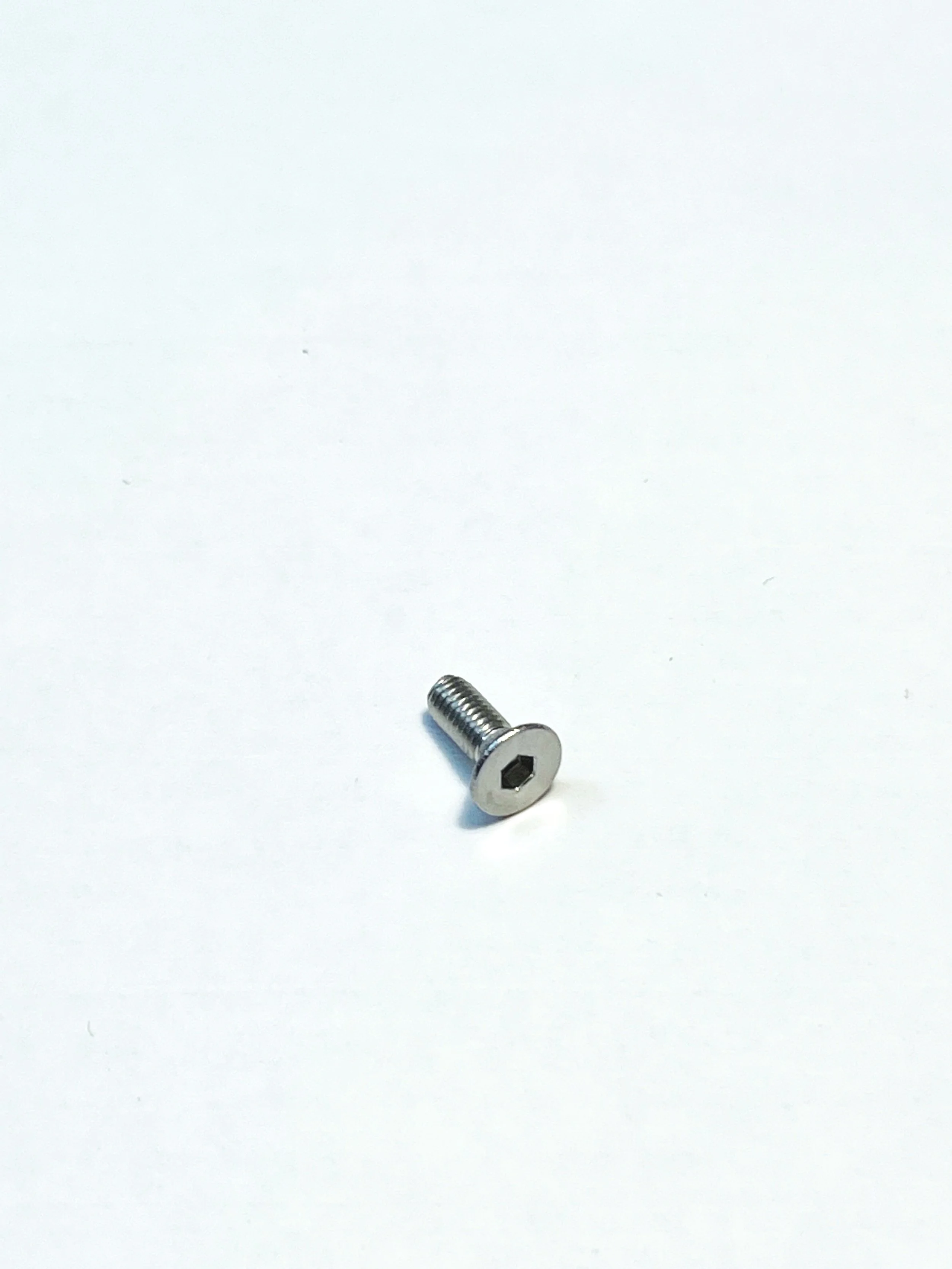

Complete port/insert assembly includes 3mm x 4mm flat head stainless steel screw. Also available as ports or inserts only.

INSERT TYPES

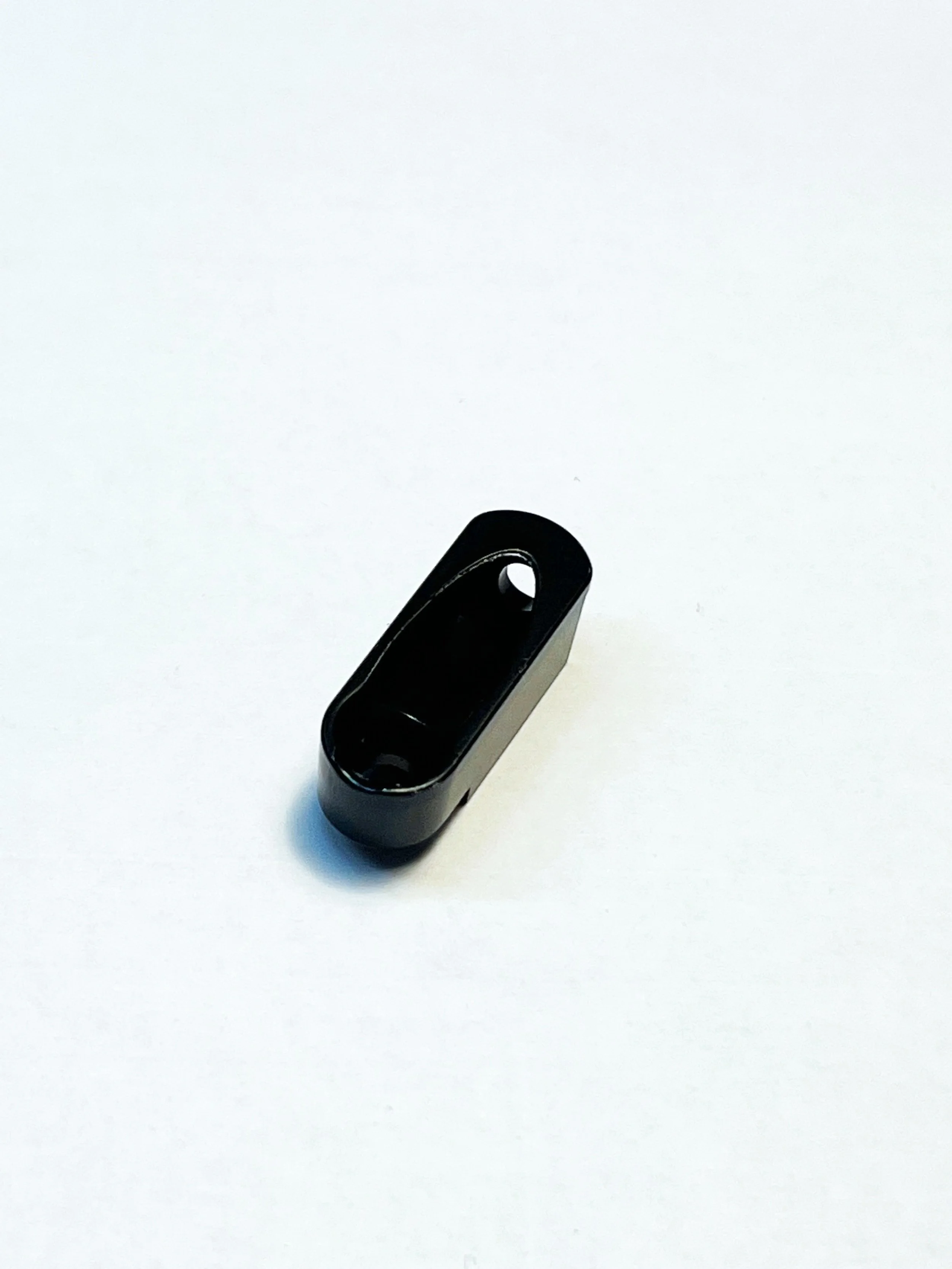

- Housing Stop for mechanical shift or brake cable

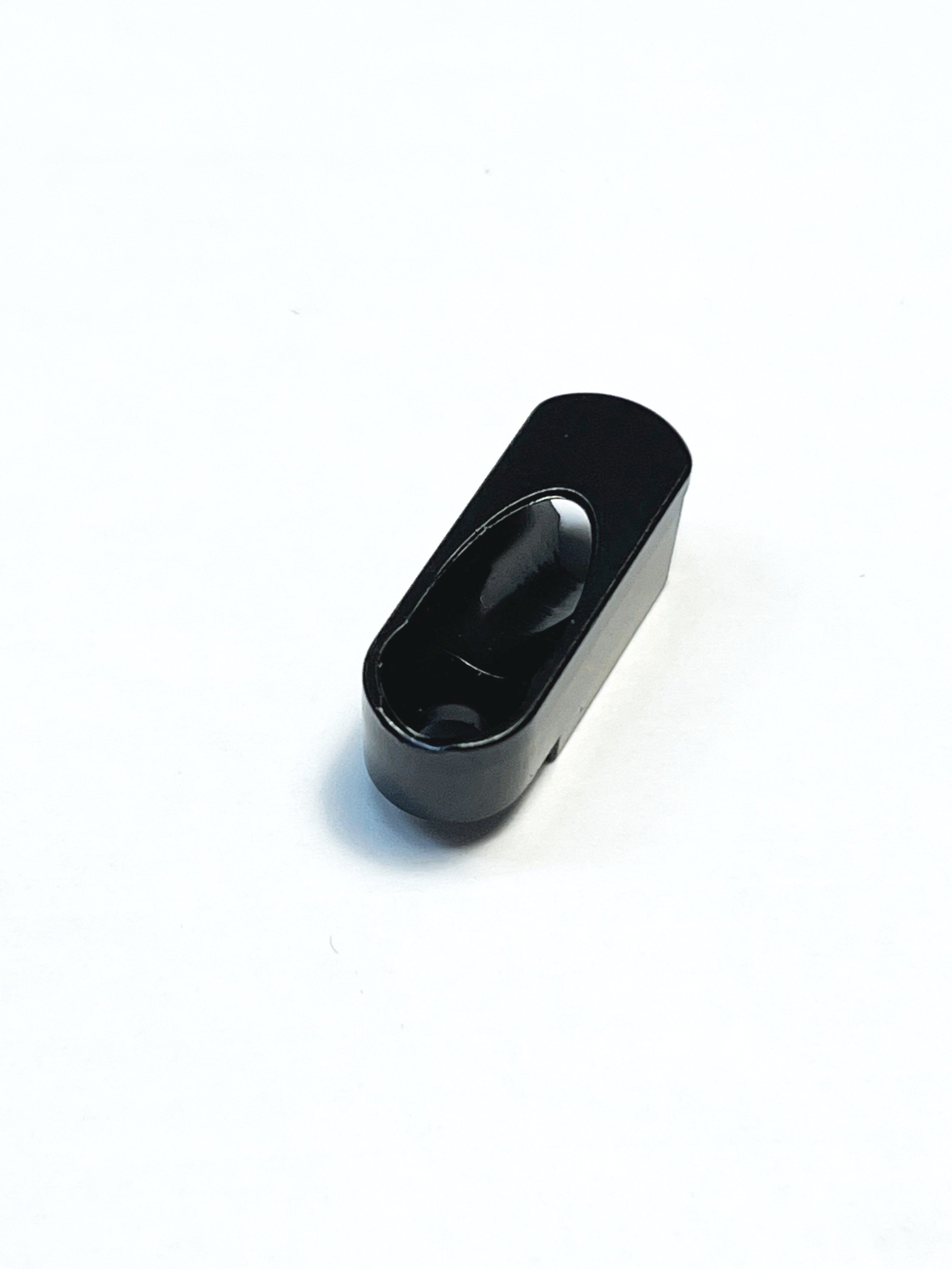

- Hose Thru-Hole for hydraulic brake hose or full cable housing

DIMENSIONS
- TITANIUM WELD-ON PORT
-- LOWER BODY OD: 23.98 L x 8.98 W x 6.5 D
-- TOP LIP OD: 29L x 13 W x 1.5 D / beveled edge
-- For 24mm x 9mm frame slot

- ALUMINUM STOP/GUIDE INSERTS
-- 22 L x 7.9 W x 8 D
-- Length is 21mm body + 1mm lip

WEIGHTS
- Titanium Weld-On Port: 1.5g
- Aluminum Stop/Guide Inserts: 2g
- Total including M3x4mm Screw: 4g
